特征：
符合OIML認證指標
高精度
合金鋼
易于安裝，性能穩定
合金鋼/不銹鋼
| SPECIFICATIONS 技術參數 | |||
| Full Scale Output 靈敏度輸出 | 2.0±0.1%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) |
| Zerc Balance 零點輸出 | ±1.0mV/V | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ |
| Non-linearity 非線性 | <±0.3% | Nominal Temperature Range 工作溫度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重復性 | <±0.3% | ||
| Hysteresis Error 滯后 | <±0.3% | Safe Overload 安全過載 | 150% of full scale |
| Creep in 30 min 30分鐘蠕變 | <±0.3% | Breaking Overload 極限過載 | 300% of full scale |
| Input Resistance 輸入電阻 | 775Ω±5 | IP Rating 防護等級 | IP67/IP68 |
| Outnput Resistance 輸出電阻 | 702Ω±2 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材質 | Alloy steel/Stainless steel 合金鋼/不銹鋼 | ||

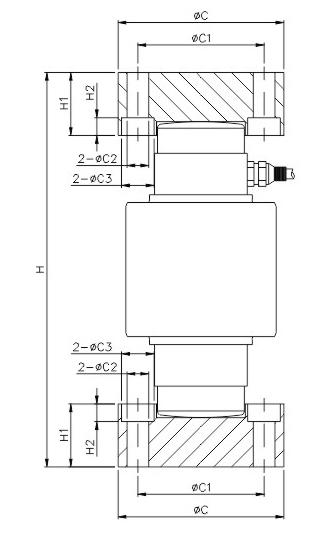

| DIMENSIONS 尺寸 | |||||||
RATE CAPACITY 量程 | C | C1 | C2 | C3 | H | H1 | H2 |
| t/mm | |||||||
| 10-40 | 85 | 64 | 10.5 | 17 | 200 | 31 | 11 |
| klb/inches(conversion of above dimensions 由以上尺寸轉換) | |||||||
| 22-88 | 3.35 | 2.52 | 0.41 | 0.67 | 7.87 | 1.22 | 0.43 |
