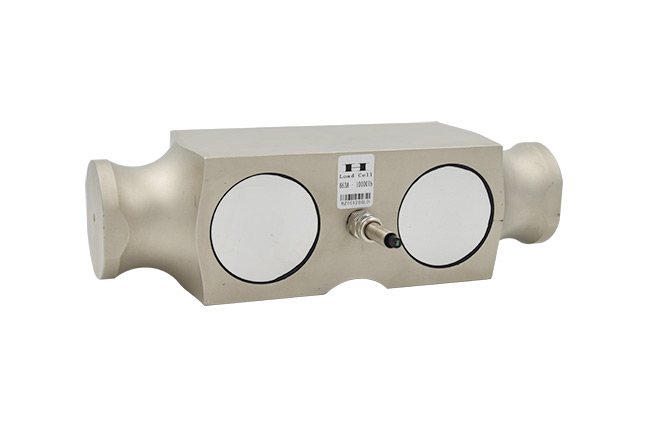

量程：10KLb,45KLb,50KLb,,100KLb
適用于汽車衡，惡劣壞境稱重
特征：
符合OIML認證指標
高精度
合金鋼
易于安裝，性能穩定
合金鋼/不銹鋼
| SPECIFICATIONS 技術參數 | |||
| Full Scale Output 靈敏度輸出 | 2.0±0.1%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) |
| Zerc Balance 零點輸出 | ±1.0mV/V | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ |
| Non-linearity 非線性 | <±0.3% | Nominal Temperature Range 工作溫度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重復性 | <±0.3% | ||
| Hysteresis Error 滯后 | <±0.3% | Safe Overload 安全過載 | 150% of full scale |
| Creep in 30 min 30分鐘蠕變 | <±0.3% | Breaking Overload 極限過載 | 300% of full scale |
| Input Resistance 輸入電阻 | 775Ω±5 | IP Rating 防護等級 | IP67/IP68 |
| Outnput Resistance 輸出電阻 | 702Ω±2 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材質 | Alloy steel/Stainless steel 合金鋼/不銹鋼 | ||
| DIMENSIONS 尺寸 | |||||||||||
RATE CAPACITY 量程 | C | C1 | C2 | C3 | C4 | L | L1 | W | H | H1 | H2 |
| t/mm | |||||||||||
| 22.04-99.21 | 61 | 52 | 22 | 25.4 | 25.4 | 260 | 216 | 64 | 72 | 6 | 19 |
| 110.23-22.46 | 70 | 60 | 30 | 38.1 | 38.1 | 292 | 254 | 76 | 86 | 10 | 25 |
| klb/inches(conversion of above dimensions 由以上尺寸轉換) | |||||||||||
| 10-45 | 2.40 | 2.05 | 0.87 | 1.00 | 1.00 | 10.24 | 8.50 | 5.52 | 2.83 | 0.24 | 0.75 |
| 50-1000 | 2.75 | 2.36 | 1.18 | 1.50 | 1.50 | 11.50 | 10.00 | 2.99 | 3.39 | 0.39 | 0.98 |
