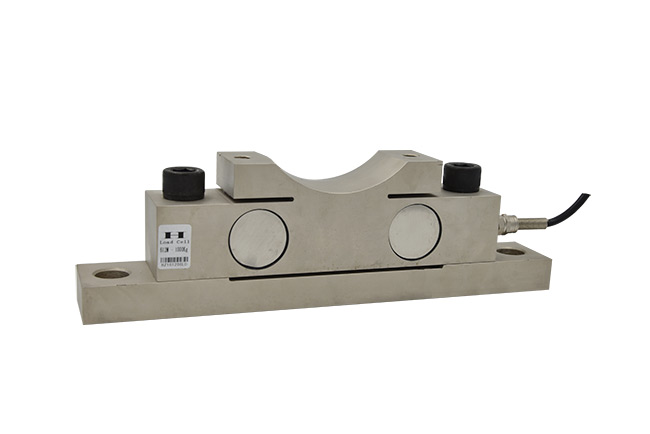

量程：1t,2t,3t,5t,7t,10t,20t,30t,40t,50t,60t
適用于汽車衡，以及其他稱重設備
特征：
符合OIML認證指標
易于安裝，性能穩定
防爆級(Ex ib Ⅱ CT4)
合金鋼
| SPECIFICATIONS 技術參數 | |||
| Full Scale Output 靈敏度輸出 | 2.0±0.1%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) |
| Zerc Balance 零點輸出 | ±1.0mV/V | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ |
| Non-linearity 非線性 | <±0.3% | Nominal Temperature Range 工作溫度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重復性 | <±0.3% | ||
| Hysteresis Error 滯后 | <±0.3% | Safe Overload 安全過載 | 150% of full scale |
| Creep in 30 min 30分鐘蠕變 | <±0.3% | Breaking Overload 極限過載 | 300% of full scale |
| Input Resistance 輸入電阻 | 775Ω±5 | IP Rating 防護等級 | IP67/IP68 |
| Outnput Resistance 輸出電阻 | 702Ω±2 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材質 | Alloy steel/Stainless steel 合金鋼/不銹鋼 | ||

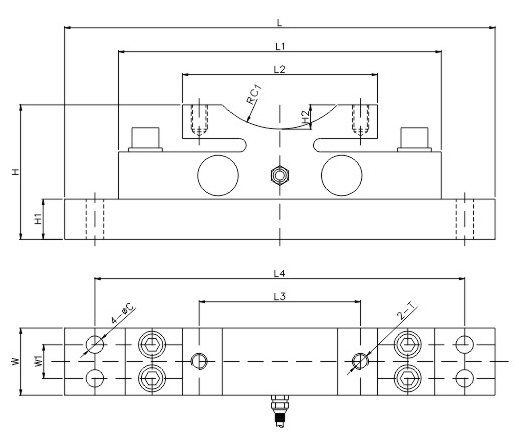

| DIMENSIONS 尺寸 | |||||||||||||
RATE CAPACITY 量程 | C | C1 | L | L1 | L2 | L3 | L4 | W | W1 | H | H1 | H2 | T |
| t/mm | |||||||||||||
| 1;2;3 | 18 | 60 | 320 | 230 | 145 | 120 | 275 | 40 | － | 85 | 25 | 18 | M12 |
| 5;7;10 | 13 | 60 | 320 | 230 | 145 | 120 | 275 | 50 | 25 | 100 | 30 | 18 | M12 |
| 15;20;30 | 18 | 80 | 390 | 300 | 210 | 180 | 345 | 56 | 29 | 127 | 45 | 20 | M16 |
| 40;50;60 | 22 | 90 | 500 | 395 | 235 | 200 | 445 | 86 | 45 | 173 | 67 | 21 | M20 |
| klb/inches(conversion of above dimensions 由以上尺寸轉換) | |||||||||||||
| 2.2;4.4;6.6 | 0.71 | 2.36 | 12.60 | 9.05 | 5.71 | 4.72 | 10.83 | 1.57 | － | 3.35 | 0.98 | 0.71 | M12 |
| 11;15;22 | 0.51 | 2.36 | 12.60 | 9.05 | 5.71 | 4.72 | 10.83 | 1.97 | 0.98 | 3.94 | 1.18 | 0.71 | M12 |
| 33;44;66 | 0.71 | 3.15 | 15.35 | 11.81 | 8.27 | 7.08 | 13.58 | 2.20 | 1.14 | 5.00 | 1.77 | 0.78 | M16 |
| 88;110;132 | 0.87 | 3.54 | 19.68 | 15.55 | 9.25 | 7.87 | 17.5 | 3.38 | 1.77 | 6.8 | 2.6 | 0.826 | M20 |
