特征：
高精度
鋁制平行梁結構
整體安裝
| SPECIFICATIONS 技術參數 | |||
| Full Scale Output 靈敏度輸出 | 2.3±0.04%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) |
| Zerc Balance 零點輸出 | ±0.02mV/V | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ |
| Non-linearity 非線性 | <±0.02% | Nominal Temperature Range 工作溫度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重復性 | <±0.02% | ||
| Hysteresis Error 滯后 | <±0.02% | Safe Overload 安全過載 | 150% of full scale |
| Creep in 30 min 30分鐘蠕變 | <±0.02% | Breaking Overload 極限過載 | 200% of full scale |
| Input Resistance 輸入電阻 | 405Ω±30 | IP Rating 防護等級 | IP67 |
| Outnput Resistance 輸出電阻 | 350Ω±3 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材質 | Aluminum 鋁合金 | ||

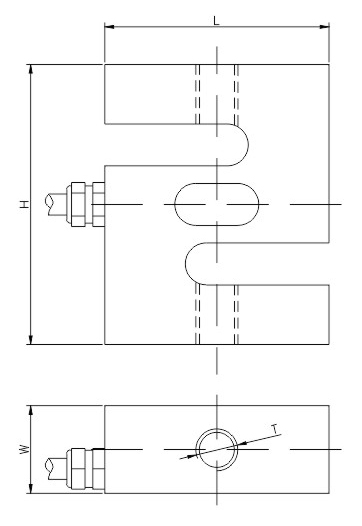

| DIMENSIONS 尺寸 | ||||
RATE CAPACITY 量程 | L | W | H | T |
| kg/mm | ||||
| 500 | 64 | 25 | 80 | M12×1.75 |
| lb/inches(conversion of above dimensions 由以上尺寸轉換) | ||||
| 1000 | 2.52 | 0.98 | 3.15 | M12×1.75 |
